Baja Drive Over Fenders 10K

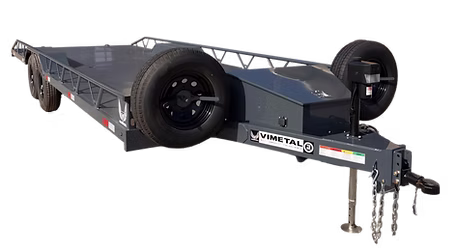

The VIMETAL BDOF-10K is a trailer designed for light off-road machines, UTVs, or sand cars. Built with precision and strength, it features a low center of gravity for smoother loading, better handling, and maximum stability at high speeds. With a 10,200 lb capacity, tandem axles, and reinforced steel structure, it’s made to perform under pressure. Clean welds, a bold design, and premium materials make the BDOF-10K a go-to choice for racers, builders, and adventurers who demand reliability and style in one trailer.
STANDARD FEATURES
AXLE: Tandem 5200 LB capacity 6 LUG Heavy Duty Axles
BRAKES: Electric brakes at front axle and Breakaway
TIRES: ST225/75/R15 Load Range (D) 8 Ply
WHEELS: Black Mod Steel 15» x 6» 6 Bolt
SUSPENSION: 5 Leaves Slipper Spring heavy duty
COUPLER: 2-5/16» ball 12.5k with 4 hole bracket
JACK: 7000 LB SQ tube Top Wind Jack
LIGHTS: LED DOT Stop, Tail, Turn & Clearance
TONGUE: Rectangle Tube 2» X 6»
FLOOR/FENDERS: 1/8» Steel diamond plate
FRAME: Square Tube 2» X 6»
TOP RAIL: 1-5/8» Pipe Size 40
G.V.W.R.: 9,990 Lbs
SAFETY CHAIN: 5/16″ G30 w/Safety Latch Hook (2 each)
G.A.W.R.: 5,080 lbs
ELEC. PLUG: 7-Way RV
HITCH TYPE: Bumper Pull
RAMP: 18» x 5′ Loading ramps
PAINT: Strength Finish High-Quality Coat
AVAILABLE OPTIONS
Under deck mounted fuel tank 50/100 gal
12 V Electric fuel pump
Winch base
12 V Electric Winch
12 V Electric Jack
Brakes on second axle
Extra spare axle
Disk Brake Upgrade On Foward Axle
Disk Brake Upgrade On Rare Axle
E-track (cost per foot)
Deep Cycle Marine Battery
Spare Axle Complete with Disk Brakes
Dove Tail Upgrade
LED Work Lights-Flush Mounted (each)
Flush Mounted O Rings (each)
